Components of CCTV

1.Camera:

A CCTV camera is a type of video surveillance camera that is used for monitoring and transmitting video footage of a specific area or location to a designated viewing point. Unlike broadcast television, CCTV footage is not publicly transmitted but is rather transmitted over a closed circuit, typically for surveillance and security purposes.

2. DVR:

A DVR, or Digital Video Recorder, is a device used to record video in a digital format onto a hard drive or other storage medium. It is commonly used in surveillance systems, television broadcasting, and home entertainment systems. Here's an overview of its structure and function:

i. Input Sources: DVRs can accept video input from various sources, including analog cameras, digital cameras, satellite or cable receivers, DVD players, and even streaming services in more modern models. These input sources are connected to the DVR via cables or wirelessly, depending on the type of connection supported.



ii. Processing Unit: The processing unit of a DVR handles tasks such as encoding, decoding, compression, and decompression of video signals. It may contain specialized hardware for these tasks to ensure efficient processing of video data.

iii. Storage: DVRs typically have internal storage in the form of a hard drive or solid-state drive (SSD) where recorded video footage is stored. The storage capacity can vary depending on the model and configuration, ranging from a few gigabytes to several terabytes. Some DVRs also support external storage devices for expanded storage capacity.

iv. Compression: Video data is often compressed to reduce file size and storage requirements. Common video compression formats used by DVRs include MPEG-2, MPEG-4, H.264, and H.265. Compression algorithms are applied to the video data before it is stored on the DVR's storage medium.

v. User Interface: DVRs feature a user interface that allows users to control and configure various settings, such as recording schedules, motion detection sensitivity, and playback options. The user interface is typically accessed through a remote control, front panel buttons, or a web-based interface.

vi. Playback: DVRs allow users to play back recorded video footage either locally on the device itself or remotely over a network connection. Users can search for specific recordings based on time, date, or event, and play them back in real-time or at accelerated speeds.

vii. Networking: Many DVRs support network connectivity, allowing users to access the device remotely over the internet or a local network. This enables features such as remote viewing of live and recorded video, remote configuration and management, and integration with other systems and devices.

viii. Security Features: DVRs often include security features such as password protection, encryption, and user authentication to prevent unauthorized access to the system and safeguard recorded video footage.

Overall, DVRs provide a convenient and efficient way to record, store, and manage video footage from various sources, making them valuable tools for surveillance, entertainment, and other applications.

3. Storage Device for CCTV Camera:

A CCTV (Closed Circuit Television) camera system typically requires a storage device to save recorded footage. This storage device is often a hard disk drive (HDD) or a solid-state drive (SSD). The choice between HDD and SSD depends on various factors such as budget, storage capacity requirements, and expected performance.

i. Hard Disk (HDD):   HDDs are the traditional choice for CCTV systems due to their relatively low cost per gigabyte compared to SSDs.

They are available in large capacities, which is important for storing vast amounts of video footage in surveillance applications.

However, HDDs have moving parts, which make them susceptible to mechanical failures over time. They might not offer the same level of reliability or durability as SSDs, especially in environments with extreme temperatures or vibrations.



ii. Solid-State Drive (SSD):

 SSDs are becoming increasingly popular in CCTV systems due to their faster read/write speeds and greater reliability compared to HDDs.

They have no moving parts, making them more resistant to physical shocks and vibrations.

SSDs generally consume less power and produce less heat compared to HDDs.

However, SSDs are typically more expensive per gigabyte than HDDs, which might make them less economical for storing large amounts of surveillance footage.



When choosing a storage device for a CCTV system, it's essential to consider factors such as storage capacity, reliability, performance requirements, and budget constraints to determine whether an HDD or SSD is the best fit for the specific application. Additionally, some advanced CCTV systems may offer options for RAID (Redundant Array of Independent Disks) configurations to improve data redundancy and fault tolerance.

4. SMPS (Switched Mode Power Supply):

A Switched Mode Power Supply (SMPS) is commonly used in various electronic devices, including CCTV cameras, due to its efficiency, compact size, and ability to regulate output voltage and current. Here's how an SMPS typically works in the context of powering a CCTV camera:

i. Input AC to Rectification: The SMPS takes in an alternating current (AC) input from the mains power source. This AC input is first rectified into a direct current (DC) signal by a diode bridge or a rectifier circuit.

ii. PFC (Power Factor Correction): In some SMPS designs, especially those for larger appliances, a Power Factor Correction stage may be included to improve efficiency and reduce harmonic distortion.

iii. Switching Stage: The rectified DC voltage is then passed through a high-frequency switching stage, typically controlled by a pulse-width modulation (PWM) signal generated by an integrated circuit or microcontroller. This switching stage rapidly turns the power transistors on and off, converting the DC voltage into a high-frequency AC signal.

iv. Isolation and Voltage Regulation: The high-frequency AC signal is fed into a transformer, which isolates the output from the input and steps down (or steps up, depending on the application) the voltage to the desired level. This transformed AC signal is then rectified back into DC using another rectifier circuit.

v. Filtering and Regulation: The rectified DC output from the transformer is smoothed and regulated using capacitors and voltage regulation circuits to ensure a stable output voltage regardless of variations in input voltage or load.



vi. Output: The regulated DC output is then fed to the CCTV camera, providing it with the required power at the appropriate voltage level.

SMPS offers several advantages over traditional linear power supplies, including higher efficiency, smaller size, lighter weight, and the ability to handle a wide range of input voltages. These characteristics make it well-suited for powering CCTV cameras, which often require compact and efficient power solutions for continuous operation.

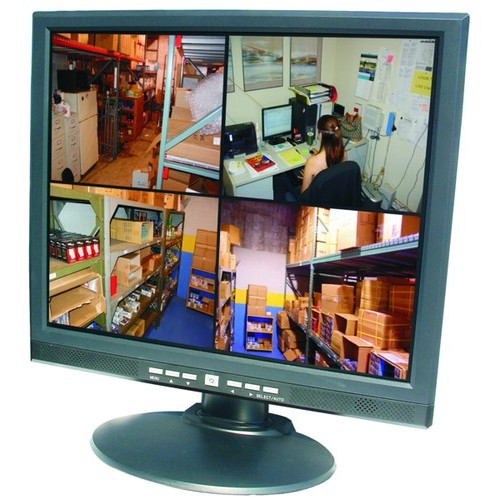

5. Monitor or TV for CCTV Camera:

The choice between using a monitor or a TV for CCTV Camera viewing depends on various factors such as the intended use, space available, budget and personal preferences. Here are some considerations to help you decide:

i. Display Size: TVs typically come in larger sizes compared to monitors. If you need a larger display for viewing footage from multiple cameras simultaneously or from a distance, a TV might be more suitable.

ii. Resolution: Monitors often have higher resolution options compared to TVs, especially in smaller sizes. If you need to see finer details in the footage, such as facial features or license plates, a high-resolution monitor might be preferable.

iii. Durability: Commercial-grade monitors are often built for continuous use and may have features such as anti-burn-in technology, making them more suitable for 24/7 surveillance monitoring compared to consumer-grade TVs.

iv. Connectivity: Consider the inputs and outputs available on the device. Both monitors and TVs typically offer HDMI inputs, but monitors may have additional input options like DisplayPort, VGA, or BNC connectors, which can be useful for connecting to various CCTV systems.

v. Cost: Generally, monitors are more cost-effective than TVs of similar size and features, especially when considering high-resolution options. However, this can vary depending on the specific models and brands.

vi. Space: If space is limited, a smaller monitor might be more practical than a large TV. Monitors are often more compact and easier to mount on walls or place on desks.

vii. Audio Output: If you need to hear audio along with video footage, ensure the chosen display device has built-in speakers or audio output options.

viii. Integration with CCTV System: Some CCTV systems may have specific compatibility or requirements regarding the type of display device used. Check the specifications of your CCTV system to ensure compatibility with either a monitor or a TV.

Ultimately, both monitors and TVs can be suitable for viewing CCTV camera footage, so consider your specific needs and preferences to make the best choice for your surveillance setup.

6. Mouse for CCTV Camera:

If you're looking for a mouse to use with a CCTV camera system, you don't necessarily need a specialized mouse. Any standard USB or wireless mouse should work fine with most CCTV systems that have a graphical user interface (GUI) for control and navigation.

When choosing a mouse, consider factors such as:

i. Wired vs. Wireless: Decide whether you prefer a wired or wireless mouse. Wireless mice offer more freedom of movement but may require batteries and can suffer from interference.

ii. Ergonomics: Choose a mouse that feels comfortable to use for extended periods, especially if you'll be monitoring CCTV footage for long durations.

iii. Precision and Sensitivity: Look for a mouse with adjustable sensitivity settings if you need precise control over the on-screen interface.

iv. Durability: Since the mouse may be used frequently, opt for a durable model that can withstand continuous use.

v. Compatibility: Ensure the mouse is compatible with your CCTV system's interface. Most modern CCTV systems should work with standard mice.

vi. Budget: Consider your budget and find a mouse that offers the features you need without breaking the bank.

Popular brands like Logitech, Microsoft, and Razer offer a variety of mice suitable for CCTV system use. Ultimately, choose a mouse that meets your specific needs and preferences.

7. Network Rack:

Choosing the right network rack for your CCTV camera system is crucial for ensuring proper organization, functionality, and maintenance. Here are some considerations and steps you can follow to select the appropriate network rack:

i. Assess Your Requirements: Determine the number of CCTV cameras you have or plan to install, the type of cameras (analog, IP, PTZ, etc.), and any additional equipment such as network switches, DVRs, power supplies, etc.

ii. Estimate Future Growth: Consider scalability. Your system might expand in the future, so it's wise to choose a rack that can accommodate additional equipment.

iii. Space Availability: Measure the space where you intend to install the rack. Ensure it has enough room for the rack's dimensions and allows for proper ventilation and cable management.

iv. Type of Rack: Decide between open-frame and enclosed racks. Open-frame racks offer easier access for maintenance and cooling but provide less security. Enclosed racks offer better security and protection against dust and physical damage but might require additional cooling.

v. Rack Size: Choose the appropriate height, width, and depth for your rack based on the equipment you need to install and the available space. Standard rack heights are measured in 'U' (rack units), with one 'U' equaling 1.75 inches (44.45 mm).

vi. Ventilation and Cooling: Ensure the rack provides adequate ventilation to prevent overheating of your CCTV equipment. Consider racks with built-in fans or plan for additional cooling solutions if necessary.



vii. Cable Management: Look for racks with cable management features such as cable trays, vertical and horizontal cable managers, and cable routing channels to keep your installation organized and neat.

viii. Security: If security is a concern, choose racks with locking mechanisms or consider adding lockable doors or panels to restrict access to your equipment.

ix. Quality and Durability: Invest in a high-quality rack that can withstand the weight of your equipment and provides long-term durability.

x. Budget: Consider your budget constraints while balancing the need for quality and features.

xi. Brand and Reviews: Research reputable brands and read reviews from other users to gauge the reliability and performance of the rack you're considering.

Once you've considered these factors, you can make an informed decision and select the network rack that best fits your CCTV camera system's requirements. Remember to follow installation guidelines and best practices to ensure the optimal performance and longevity of your equipment.

8. Safety Box for DVR:

A safety box for a DVR (Digital Video Recorder) is a useful accessory to protect your DVR from theft, tampering, or damage. Here's some information on what it is and why you might need one:

i. What is a Safety Box for DVR?

A safety box for a DVR is a secure enclosure designed specifically to house a DVR unit. It typically features heavy-duty construction with locking mechanisms to prevent unauthorized access.

ii. Why Use a Safety Box for DVR?

Theft Prevention: DVRs are valuable components in surveillance systems, and they can be targeted for theft. A safety box adds an extra layer of security, making it more difficult for thieves to steal the DVR.

Protection from Tampering: In environments where the DVR may be accessible to unauthorized individuals, such as public spaces or shared offices, a safety box can prevent tampering with the DVR or its recordings.

Environmental Protection: Some safety boxes offer protection against environmental factors like dust, moisture, and temperature fluctuations, which can extend the lifespan of the DVR.

iii. Features to Look for a Safety Box for DVR :

Sturdy Construction: Look for a safety box made of durable materials such as steel to ensure it provides adequate protection for the DVR.

Locking Mechanism: The safety box should have a reliable locking mechanism, such as a key lock or combination lock, to prevent unauthorized access.

 Ventilation: Ensure that the safety box provides sufficient ventilation to prevent overheating of the DVR.

Compatibility: Make sure the safety box is compatible with your DVR model in terms of size and mounting options.

iv. Installation:

 Mounting: Most safety boxes come with mounting hardware for easy installation. Ensure that the box is securely mounted to a stable surface to prevent it from being easily removed.

Accessibility: Consider the accessibility of the DVR within the safety box. It should be easy to access for authorized personnel while still being secure from unauthorized access.

v. Cost Considerations:

The cost of a safety box for a DVR can vary depending on factors such as size, construction quality, and additional features like ventilation or insulation.

The dimensions of a safety box for a DVR (Digital Video Recorder) can vary depending on the size and model of the DVR you have. However, here are some general considerations:

i. Internal dimensions: Ensure that the internal dimensions of the safety box are large enough to accommodate your DVR comfortably. Measure the length, width, and height of your DVR unit to determine the minimum internal dimensions required.

ii. Allow for ventilation: DVR units can generate heat, especially when in operation. Ensure that the safety box allows for adequate ventilation to prevent overheating. This may require additional space around the DVR within the safety box.

iii. Additional space for cables: Leave some extra space within the safety box to accommodate cables and connectors connected to the DVR. This will allow for easy installation and maintenance.

iv. Security features: Choose a safety box with appropriate security features such as locking mechanisms to prevent unauthorized access to the DVR.

v. Material: Consider the material of the safety box. It should be sturdy enough to provide protection for the DVR against theft and damage.

It's always a good idea to consult the specifications provided by the manufacturer of both the DVR and the safety box to ensure compatibility and proper fit. If you're unsure, you can also consult with a professional or the customer support of the respective companies for guidance.

While it may represent an additional expense, the cost is often justified by the protection it provides for your DVR investment and the security of your surveillance system.

Overall, a safety box for your DVR is a worthwhile investment to protect your surveillance system from theft, tampering, and environmental damage. Choose a box that meets your security needs and ensures the longevity of your DVR.

9. Camera Mounting Box:

A CCTV camera mounting box is a protective enclosure used to install and secure CCTV (Closed Circuit Television) cameras in outdoor environments. These boxes come in various sizes and materials, typically made of weather-resistant materials like aluminum or stainless steel to withstand harsh outdoor conditions such as rain, wind, and extreme temperatures.

The primary functions of a CCTV camera mounting box include:

i. Protection: The box protects the CCTV camera from environmental elements such as rain, snow, dust, and vandalism, ensuring the camera remains functional and undamaged.

ii. Mounting: It provides a stable platform for mounting the CCTV camera securely. Mounting options may vary, but most boxes come with standardized mounting brackets compatible with different types of cameras.

iii. Concealment: In some cases, mounting boxes are designed to conceal the camera's wiring, connectors, and other vulnerable parts, reducing the risk of tampering or sabotage.

iv. Adjustability: Many mounting boxes offer adjustable features such as tilt, pan, and rotation, allowing for precise positioning of the camera to achieve the desired field of view and coverage area.

v. Cable Management: They often include provisions for cable management, helping to organize and protect the camera's power and data cables from damage or interference.

When selecting a CCTV camera mounting box, it's essential to consider factors such as the camera's size and weight, the environmental conditions where it will be installed, and any specific mounting requirements dictated by the location or surveillance needs. Additionally, ensure compatibility with the chosen CCTV camera model to guarantee proper fit and functionality.

10. 4G Router for CCTV Camera:

Using a 4G router for CCTV cameras can be a practical solution, especially in locations where traditional wired internet connections are not available or reliable. Here's a general guide on how to set up a 4G router for CCTV cameras:

        I.            Choose a Suitable 4G Router: Look for a 4G router that supports the necessary bandwidth and has features suitable for your CCTV camera system. Ensure it has sufficient LAN ports to connect all your cameras if they are wired, or supports Wi-Fi if you have wireless cameras.



      II.            Select a 4G Data Plan: Choose a suitable data plan from a mobile network provider that offers good coverage in your area. Consider factors such as data allowance, speed, and cost.

    III.            Insert SIM Card: Insert the SIM card provided by your chosen mobile network provider into the SIM card slot on the 4G router. Make sure it's properly inserted and activated.

    IV.            Power on the Router: Connect the power adapter to the 4G router and plug it into a power outlet. Wait for the router to boot up and establish a connection to the mobile network. This process may take a few minutes.

      V.            Connect CCTV Cameras: Once the 4G router is connected to the internet, you can connect your CCTV cameras to the router. If your cameras are wired, use Ethernet cables to connect them to the LAN ports on the router. If your cameras are wireless, you can connect them to the router via Wi-Fi.

    VI.            Configure Router Settings: Access the router's web interface using a web browser on a computer or mobile device connected to the router's network. You may need to enter the router's IP address (usually something like 192.168.0.1) into the browser's address bar and log in with the default username and password (check the router's manual for details). Configure the router's settings as needed, including Wi-Fi network settings, port forwarding for remote access to the CCTV cameras, and any other relevant configurations.

 VII.            Set Up CCTV Camera Software: Install and configure the software or app provided with your CCTV cameras to access and manage them remotely. You'll need to input the necessary network settings to connect the cameras to the internet via the 4G router.

VIII.            Test the System: Once everything is set up, test the CCTV camera system to ensure that you can view the camera feeds remotely and that everything is working as expected.

    IX.            Monitor Data Usage: Keep an eye on your data usage to ensure you don't exceed your data plan's limits. You can usually monitor data usage through the router's web interface or the mobile network provider's app or website.

      X.            Security Considerations: Ensure that your CCTV camera system and 4G router are properly secured to prevent unauthorized access. Change default passwords, enable encryption where possible, and consider using a VPN for added security when accessing the system remotely.

By following these steps, you should be able to set up a reliable CCTV camera system using a 4G router for internet connectivity.

11. Internet Connection (Wi-Fi or Internet Cable):

To connect a CCTV camera to the internet, you have a few options depending on the camera's capabilities and your network setup:

i. Wi-Fi Connection: Many modern CCTV cameras come with built-in Wi-Fi capabilities, allowing you to connect them directly to your Wi-Fi network without the need for cables. To set up a Wi-Fi connection, you typically follow these steps:

Ø  Power on the CCTV camera and put it in Wi-Fi setup mode (consult the camera's manual for specific instructions).

Ø  Access the settings or configuration menu of the camera using a computer or mobile device connected to the same Wi-Fi network.

Ø  Scan for available Wi-Fi networks and select yours.

Ø  Enter your Wi-Fi network password when prompted.

Once the connection is established, you can access the camera remotely over the internet using its IP address or through a dedicated app provided by the camera manufacturer.



ii. Ethernet Cable Connection: If your CCTV camera doesn't support Wi-Fi or you prefer a wired connection for reliability and stability, you can connect it directly to your router or switch using an Ethernet cable. To set up an Ethernet connection:

Ø  Connect one end of the Ethernet cable to the Ethernet port on the CCTV camera.

Ø  Connect the other end of the Ethernet cable to an available Ethernet port on your router or switch.

Ø  Power on the CCTV camera.

Ø  Access the settings or configuration menu of the camera using a computer or mobile device connected to the same network.

Ø  Configure the camera's network settings to use DHCP (Dynamic Host Configuration Protocol) to automatically obtain an IP address from your router, or assign a static IP address within your network's subnet.

Ø  Once configured, you can access the camera remotely over the internet using its IP address.

iii. Powerline Adapter: If running Ethernet cables isn't practical due to distance or obstacles, you can use powerline adapters to transmit network data over your home's electrical wiring. With powerline adapters, you can connect the CCTV camera to your router using Ethernet cables without having to run cables across your home.

Regardless of the connection method you choose, it's essential to ensure that your network has sufficient bandwidth and security measures in place to protect your CCTV system from unauthorized access. Additionally, regularly updating the firmware of your CCTV cameras can help patch any security vulnerabilities and ensure optimal performance.

12. Wi-Fi Receiver:

A Wi-Fi receiver for a CCTV camera typically refers to a device that allows the CCTV camera to transmit its video feed wirelessly over a Wi-Fi network to a monitoring station or a recording device. These receivers are often integrated into the camera itself or provided as a separate component.

Here are some key aspects and components of a Wi-Fi receiver for a CCTV camera:

        I.            Wi-Fi Connectivity: The receiver should have Wi-Fi capabilities to connect to the local network. It typically supports standard Wi-Fi protocols such as 802.11n or 802.11ac.

      II.            Compatibility: The receiver should be compatible with the specific CCTV camera model or brand you are using. Compatibility ensures seamless integration and proper functionality.

    III.            Signal Range: The receiver should have a sufficient signal range to communicate with the CCTV camera without any interference or signal loss. This range can vary depending on the environment and obstacles.

    IV.            Security: Since CCTV cameras are used for surveillance purposes, it's essential to ensure that the Wi-Fi transmission is secure to prevent unauthorized access to the video feed. This can be achieved through encryption protocols such as WPA2-PSK.

      V.            Power Supply: The receiver needs to be powered either through a direct power source or through Power over Ethernet (PoE) if supported.

    VI.            Setup and Configuration: The receiver should have user-friendly setup and configuration options, allowing users to easily connect it to the Wi-Fi network and configure settings as needed.

 VII.            Monitoring and Management: Some receivers come with software or apps that allow users to monitor and manage multiple CCTV cameras from a central location. This includes features such as live viewing, recording, playback, and alerts.

VIII.            Reliability and Durability: The receiver should be reliable and durable, capable of operating continuously without frequent breakdowns or malfunctions, especially in outdoor or harsh environments.

Overall, a Wi-Fi receiver for a CCTV camera plays a crucial role in enabling wireless connectivity and remote monitoring capabilities, enhancing the flexibility and convenience of CCTV surveillance systems.

13. Hooter:

A "hooter" for a CCTV camera typically refers to an audio alert system that can be activated when motion is detected or when certain events occur within the camera's field of view. This audio alert, often in the form of a loud siren or buzzer, serves as a deterrent or warning signal for potential intruders or to notify nearby individuals of suspicious activity.

These audio alert systems are often integrated with CCTV surveillance systems to enhance security measures and provide real-time alerts to security personnel or property owners. They can be programmed to trigger based on specific criteria such as motion detection, breach of virtual perimeters, or tampering with the camera itself.

When considering implementing a hooter for a CCTV camera, it's essential to ensure compliance with local regulations regarding the use of audio surveillance equipment and to consider factors such as the surrounding environment and potential noise pollution issues. Additionally, the effectiveness of such systems may vary depending on the location and specific security requirements of the premises.

14. Speaker:

A speaker for a CCTV camera system is typically used for audio monitoring and communication purposes. Here are some common uses and features of speakers in CCTV camera setups:

                 Two-way audio communication: Some CCTV camera systems are equipped with speakers and microphones, allowing for two-way communication between the observer and individuals within the camera's field of view. This feature can be useful for security personnel to communicate with intruders, visitors, or employees.

      II.            Audio monitoring: Speakers can also be used for audio monitoring, allowing security personnel to listen to sounds within the camera's vicinity. This can help detect unusual or suspicious activity, even if it's not immediately visible on the video feed.

    III.            Deterrent: In some cases, speakers are used to deter potential intruders by broadcasting pre-recorded messages or warnings. For example, a speaker might play a message indicating that the premises are under surveillance and that trespassers will be prosecuted.

    IV.            Integration with alarms: Speakers can be integrated with alarm systems to provide audible alerts in case of emergencies or security breaches. This can help draw attention to the situation and prompt a response from security personnel or authorities.

      V.            Remote access and control: Many modern CCTV camera systems allow remote access and control, including the ability to remotely activate or deactivate speakers, adjust volume levels, or initiate two-way communication. This enables real-time monitoring and intervention from anywhere with an internet connection.

When selecting a speaker for a CCTV camera system, it's important to consider compatibility with the camera models and the specific features required for your surveillance needs. Additionally, factors such as sound quality, weather resistance (if the speaker will be installed outdoors), and ease of installation should also be taken into account.

15. Microphone for CCTV Camera:

Selecting the right microphone for a CCTV camera depends on your specific requirements, such as the desired audio quality, environment, and intended use. Here are some factors to consider when choosing a microphone for your CCTV system:

i. Type of Microphone: There are several types of microphones suitable for CCTV cameras:

Ø  Built-in Microphones: Some CCTV cameras come with built-in microphones. These are convenient but may not always offer the best audio quality.

Ø  External Microphones: External microphones can be attached to the camera or placed separately for better audio capture. Options include:

Ø  Omni-directional Microphones: Capture sound from all directions. Suitable for general monitoring.

Ø  Directional Microphones: Focus on sound from a specific direction, reducing background noise. Useful for targeted surveillance or monitoring in noisy environments.

Ø  Lapel Microphones: Clip onto clothing for capturing clearer voice recordings, suitable for scenarios where individuals are speaking directly into the microphone.

ii. Audio Quality: Consider the desired audio quality for your CCTV footage. Higher-quality microphones typically provide clearer audio but may come at a higher cost.

iii. Weatherproofing: If the CCTV camera will be installed outdoors or in challenging environments, ensure the microphone is weatherproof or housed in a protective casing to withstand harsh conditions.

iv. Compatibility: Check compatibility with your CCTV camera model. Some cameras may have specific requirements or limitations regarding microphone compatibility.

v. Power Source: Determine whether the microphone requires an external power source, such as batteries or power over Ethernet (PoE), and ensure compatibility with your setup.

vi. Budget: Set a budget for the microphone and choose one that meets your requirements without overspending.

vii. Legal Considerations: Be aware of any legal regulations regarding audio recording in your area. In some jurisdictions, it may be necessary to obtain consent before recording audio.

Once you've considered these factors, you can research and compare different microphone options from various manufacturers to find the best fit for your CCTV system. Additionally, consulting with professionals or experts in surveillance equipment may provide valuable insights and recommendations.

16. RC Jack and RC Connector for CCTV Camera:

i. RC Jack: This could refer to a type of connector used in some CCTV cameras. However, it's more commonly known as an "RCA jack." RCA connectors are typically used for analog audio and video signals. They're often color-coded, with yellow for video and white/red for audio.



ii. RC Connector: This might be a typo, as there's no standard connector known as an "RC connector" in the context of CCTV cameras. However, you might be referring to other types of connectors commonly used in CCTV installations:

If you have a specific type of connector in mind or a particular context, feel free to provide more details, and I can offer more precise information.

17. BNC Connectors for CCTV Camera:

In some cases, the power for CCTV cameras is supplied through the same cable used for video transmission. In such setups, BNC connectors with integrated power connections are used.

BNC (Bayonet Neill–Concelman) connectors are commonly used in CCTV (Closed Circuit Television) systems for connecting coaxial cables to cameras, monitors, and recording devices. These connectors are preferred in CCTV applications due to their ease of installation, durability, and ability to transmit video signals with minimal interference. Here are some key points about BNC connectors in CCTV systems:

i. Compatibility: BNC connectors are widely used in CCTV cameras, DVRs (Digital Video Recorders), and other surveillance equipment. They are compatible with most coaxial cables used in CCTV installations.

ii. Connection: BNC connectors use a bayonet-style coupling mechanism, which allows for quick and secure connections. The connector is pushed onto the female jack and then twisted to lock it in place.

iii. Signal Quality: BNC connectors provide a reliable connection that minimizes signal loss and interference. This is crucial in CCTV applications where video quality and stability are essential for surveillance purposes.

iv. Types: There are different types of BNC connectors available, including straight connectors, right-angle connectors, and crimp-on connectors. The choice of connector type depends on the specific installation requirements and space constraints.

v. Installation: Installing BNC connectors involves stripping the coaxial cable's insulation, attaching the connector to the exposed wire, and crimping or soldering it in place. Proper installation ensures a secure connection and optimal signal transmission.

vi. Weatherproofing: In outdoor CCTV installations, weatherproof BNC connectors are often used to protect the connections from moisture, dust, and other environmental factors. These connectors typically feature additional sealing or gaskets to prevent water ingress.

vii. Extension and Coupling: BNC connectors also allow for the extension of CCTV cables using BNC couplers or BNC barrel connectors. This flexibility makes it easier to customize cable lengths and configure surveillance systems according to specific needs.

When selecting a DC connector for your CCTV camera setup, ensure compatibility with your camera's power requirements and the power supply unit you intend to use. It's crucial to match the polarity (positive/negative) and voltage requirements to prevent damage to your camera. Additionally, consider factors such as weatherproofing and durability if the cameras will be installed outdoors.

Overall, BNC connectors play a crucial role in ensuring reliable and high-quality video transmission in CCTV systems. Their ease of use, durability, and compatibility make them a preferred choice for surveillance professionals and installers.

18. DC Connectors for CCTV Camera:

DC connector used to supply power to the CCTV camera. It can vary depending on the camera model and power requirements, but common connectors include barrel connectors or screw terminals. DC connectors for CCTV cameras typically come in various sizes and types, but the most common ones are:

i. 2.1mm DC Plug: This is one of the most widely used connectors for CCTV cameras. It has a circular shape with a diameter of 2.1mm and a center pin for positive polarity.

ii. 2.5mm DC Plug: Similar to the 2.1mm plug, but with a slightly larger diameter of 2.5mm. It's less common but still used in some CCTV camera setups.

iii. Terminal Block Connector: This type of connector allows you to connect wires directly to the power source without using a plug. It usually has screw terminals for easy connection.

19. CCTV Camera Wire:

CCTV cameras typically use a variety of cables for power, data transmission, and connectivity. The most common types of cables used for CCTV cameras include:



i. Coaxial Cable: Coaxial cables are commonly used for analog CCTV systems. They are capable of transmitting both video and power signals over long distances without significant signal degradation. RG59 and RG6 are typical types of coaxial cables used for CCTV installations.

ii. Twisted Pair Cable (UTP): Unshielded Twisted Pair (UTP) cables are commonly used for transmitting data in network-based CCTV systems, such as IP cameras. They are also used for power-over-Ethernet (PoE) setups where power and data are transmitted over the same cable. Cat5e and Cat6 cables are standard types of UTP cables used for CCTV installations.

iii. Power Cable: Separate power cables are sometimes used to provide electrical power to CCTV cameras. These cables typically have a two-core construction, with positive (+) and negative (-) wires for supplying DC power to the cameras. Power cables may also incorporate additional features such as weatherproofing for outdoor installations.

iv. Composite Cable: Composite cables combine multiple wires within a single jacket, typically used for both power and video transmission in analog CCTV systems. They simplify installation by reducing the number of cables required and are often used in smaller-scale setups.

The specific type of cable used for a CCTV camera installation depends on factors such as the type of camera (analog or IP), the distance between the camera and the recording device, environmental conditions, and local building codes and regulations.

20. HDMI Cable for CCTV Camera:

Using an HDMI cable for a CCTV camera setup is not a typical configuration, as CCTV cameras usually output video signals via coaxial cables or network connections (e.g., Ethernet). HDMI cables are more commonly used for connecting devices like computers, gaming consoles, Blu-ray players, and TVs.

However, if your CCTV camera has an HDMI output port, you can theoretically connect it to a compatible display device such as a monitor or a TV that has an HDMI input port. This setup might be useful for testing or monitoring purposes, but it's not the standard way of connecting CCTV cameras.

If you need to extend the reach of your CCTV camera's signal or integrate it into a larger surveillance system, you would typically use appropriate cables or network connections compatible with your camera and recording/display equipment. This might involve coaxial cables, Ethernet cables, or wireless connections depending on your specific setup and requirements.

21. VGA Cable for CCTV Camera:

If you're looking to connect a CCTV camera to a monitor or display that supports VGA input, you can use a VGA cable for the connection. Here's how you can do it:

        I.            Check the CCTV camera output: Make sure your CCTV camera has a VGA output port. Most modern CCTV cameras should have this option.

      II.            Get a VGA cable: Purchase a VGA cable of suitable length to connect your CCTV camera to the monitor or display. VGA cables usually have male connectors on both ends.

    III.            Connect the CCTV camera to the monitor/display: Plug one end of the VGA cable into the VGA output port of the CCTV camera and the other end into the VGA input port of your monitor or display.

    IV.            Power on the devices: Once the cable is securely connected, power on both the CCTV camera and the monitor/display.

      V.            Adjust settings (if necessary): Depending on your CCTV camera and monitor/display, you may need to adjust settings such as display resolution to ensure optimal picture quality.

    VI.            Test the connection: Verify that the CCTV camera footage is displayed correctly on the monitor/display. If not, double-check the connections and settings.

By following these steps, you should be able to use a VGA cable to connect your CCTV camera to a monitor or display.

22. USB Extension Cable for CCTV Camera:

Yes, you can use a USB extension cable for a CCTV camera, provided that the camera connects via a USB interface. Many CCTV cameras utilize USB connections for data transfer and power supply. Here are some steps to follow:

                                I.            Check the Compatibility: Ensure that your CCTV camera supports USB connectivity. Most modern cameras should have this feature, but it's always good to verify before purchasing any equipment.

                              II.            Choose the Right Cable: Select a USB extension cable that meets your requirements in terms of length and quality. Make sure it's rated for the appropriate USB version (e.g., USB 2.0 or USB 3.0) depending on the specifications of your CCTV camera.

                            III.            Consider Power Requirements: If your CCTV camera is powered via USB, ensure that the extension cable can handle both data transfer and power supply. Some USB extension cables may not adequately transmit power over longer distances, so consider this factor when choosing the cable length.

                            IV.            Installation: Once you have the extension cable, connect one end to the USB port on your CCTV camera and the other end to the desired location where you want to extend the connection. Ensure that the connection is secure and that the cable is properly routed to avoid any potential damage.

                              V.            Testing: After installation, test the connection to ensure that both data transfer and power supply (if applicable) are functioning correctly. Monitor the camera feed to ensure there are no issues with the extended connection.

                            VI.            Considerations: Keep in mind that USB extension cables have limitations in terms of maximum length due to signal degradation over distance. If you need to extend the connection over a significant distance, consider using a powered USB hub or other signal amplification methods to maintain signal integrity.

By following these steps and considering the necessary factors, you should be able to successfully extend the connection of your CCTV camera using a USB extension cable.

23. LAN Cable for CCTV Camera:

To connect a CCTV camera to a network or a DVR (Digital Video Recorder), you typically use an Ethernet cable, also known as a LAN (Local Area Network) cable. These cables are commonly used for networking purposes and come in various categories, such as Cat5e, Cat6, or Cat6a, each with different speeds and capabilities.

When choosing a LAN cable for your CCTV camera, consider the following:

        I.            Cable Category: Cat5e cables are capable of supporting speeds up to 1 Gbps (Gigabit per second) at a maximum distance of 100 meters. Cat6 cables support higher speeds and better performance compared to Cat5e, with speeds up to 10 Gbps at 55 meters. Cat6a cables support even higher speeds and are suitable for longer distances.

     II.            Length: Ensure that the cable length is sufficient to reach from your CCTV camera to the network switch or DVR. You may need to measure the distance beforehand to select an appropriate cable length.

  III.            Solid vs. Stranded: Solid cables are better suited for permanent installations, while stranded cables are more flexible and suitable for situations where the cable might be moved or flexed frequently.

   IV.            Shielding: Shielded cables offer better protection against electromagnetic interference (EMI) and are recommended for environments with high levels of interference.

     V.            Connectors: The cable should have standard Ethernet connectors (RJ45) on both ends for compatibility with your CCTV camera and network equipment.

When installing the cable, ensure proper cable management and consider factors such as cable routing and protection against environmental hazards to maintain optimal performance and longevity.

24. RJ45 Connectors for CCTV Camera:

RJ45 connectors are commonly used for Ethernet connections and are not typically used directly with CCTV cameras, which often use BNC connectors for video signals and power connectors for power input. However, there are situations where RJ45 connectors might be involved in CCTV setups, especially in IP (Internet Protocol) cameras which transmit data over Ethernet networks.

In IP camera installations, RJ45 connectors can be used for network connectivity, providing power and data transmission over a single Ethernet cable using Power over Ethernet (PoE) technology. PoE-enabled cameras simplify installation by eliminating the need for separate power cables.

RJ45 Connector: Often used for IP cameras, RJ45 connectors are used for Ethernet connections, allowing the camera to connect to a network.

If you're dealing with IP cameras that utilize RJ45 connectors, make sure you have the appropriate networking equipment such as PoE switches or PoE injectors to provide power to the cameras and establish network connectivity.



When terminating RJ45 connectors for CCTV installations, it's crucial to follow proper wiring standards (such as TIA/EIA 568A or 568B) to ensure compatibility and reliable performance. Additionally, using quality Ethernet cables and connectors is essential for maintaining signal integrity and preventing network issues.

25. CCTV Camera Housing and Fitting:

CCTV camera housings and fittings are essential components in the installation and protection of CCTV cameras. Here's a breakdown of what they entail:

i. Housings: CCTV camera housings are protective enclosures designed to shield the camera from environmental factors such as weather, dust, moisture, and vandalism. They come in various shapes and sizes, depending on the type and size of the camera they're meant to accommodate. Housings can be made of materials like aluminum, steel, or polycarbonate, providing durability and protection.

ii. Types of Housings:

Ø  Outdoor Housings: These are weatherproof and typically feature a sunshield to protect the camera from direct sunlight.

Ø  Indoor Housings: Designed for indoor use, they are generally more lightweight and may not require extensive weatherproofing features.

Ø  Vandal-Resistant Housings: Constructed with robust materials and features to withstand tampering or deliberate damage.

iii. Fittings:

Ø  Mounting Brackets: These are used to securely attach the housing to a wall, ceiling, pole, or other structures. They come in various designs to accommodate different installation requirements.

Ø  Adjustable Arms: Some housings feature adjustable arms or brackets to facilitate precise positioning and angling of the camera.

Ø  Seals and Gaskets: These are used to create a tight seal between the housing components, protecting the camera from moisture and dust infiltration.

Ø  Heaters and Fans: Some housings include built-in heaters or fans to regulate temperature and prevent fogging or condensation on the camera lens, particularly in extreme weather conditions.



iv. Installation:

Ø  Location: Choose an appropriate location for installing the CCTV camera housing, considering factors like optimal viewing angle, coverage area, and protection from potential vandalism.

Ø  Mounting: Securely mount the housing using appropriate fittings and mounting brackets, ensuring stability and proper alignment.

Ø  Weatherproofing: If installing outdoors, ensure all seals and gaskets are properly fitted to prevent water ingress.

Ø  Wiring: Route the camera cables through the housing and fittings, ensuring a neat and secure connection to the surveillance system.

Ø  v. Maintenance:

Ø  Regularly inspect the housing for signs of damage, wear, or tampering.

Ø  Clean the housing and camera lens periodically to maintain clear visibility.

Ø  Check seals and gaskets for any deterioration and replace them if necessary to maintain weatherproofing.

Overall, selecting the right housing and fittings, along with proper installation and maintenance, is crucial for ensuring the longevity and effectiveness of CCTV camera systems in surveillance applications.

__________________________________________________________________________________________
